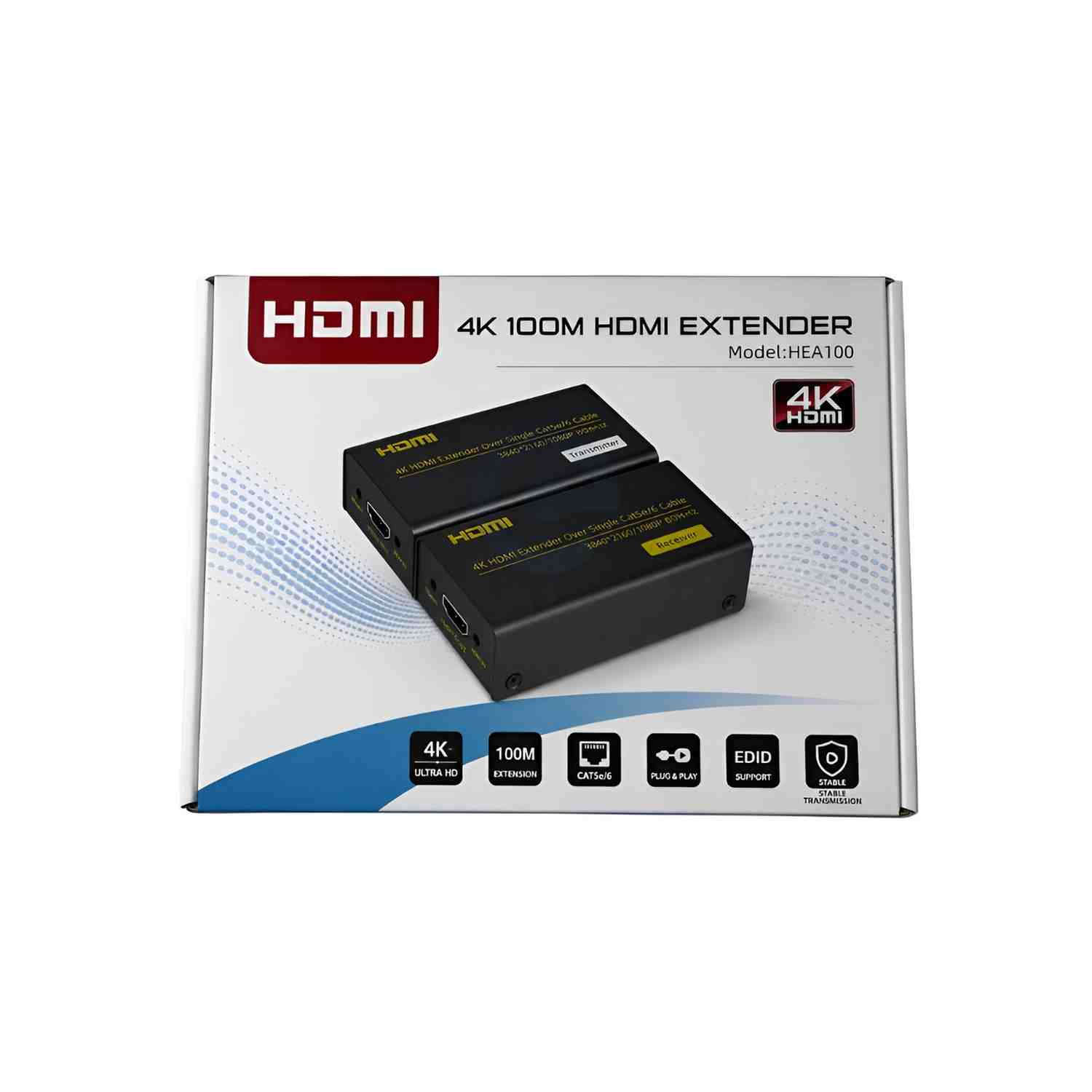

FJGEAR HEA100 4K HDMI Extender Over Cat6 100M
The FJGEAR HEA100 4K HDMI Extender is a transmitter and receiver kit designed to extend high-definition HDMI audio and video signals over long distances using a single Cat5e or Cat6 Ethernet cable. Supporting transmission distances up to 100 meters, the extender delivers stable 4K × 2K resolution at 30Hz, making it ideal for conference rooms, digital signage, home theaters, classrooms, and surveillance systems.
Compliant with HDMI 1.4 standards, the HEA100 supports advanced audio formats including DTS, Dolby, and LPCM for synchronized high-quality sound and video output. Built with durable metal housings for enhanced heat dissipation and long-term reliability, both the transmitter and receiver units operate using DC 5V/1A power adapters and provide dependable long-distance HDMI signal extension with minimal signal loss.
Specifications
- Model: HEA100
- Brand: FJGEAR
- Product Type: HDMI Extender Kit
- Components: Transmitter (TX) + Receiver (RX)
- Transmission Medium: Single Cat5e / Cat6 Cable
- Maximum Distance: Up to 100m (328ft)
- Maximum Resolution: 4K × 2K @ 30Hz (3840 × 2160)
- HDMI Version: HDMI 1.4
- Bandwidth: 340MHz
- Data Rate: Up to 3.4 × 3Gbps
- Audio Support: DTS / Dolby / LPCM
- Power Supply: DC 5V/1A
- Housing Material: Metal Enclosure
- Operating Temperature: -15°C to +55°C
- Usage: Home Theater / CCTV / Conference / Digital Signage
