IP22 Fingertip Pulse Oximeter SpO2 & Pulse Monitor

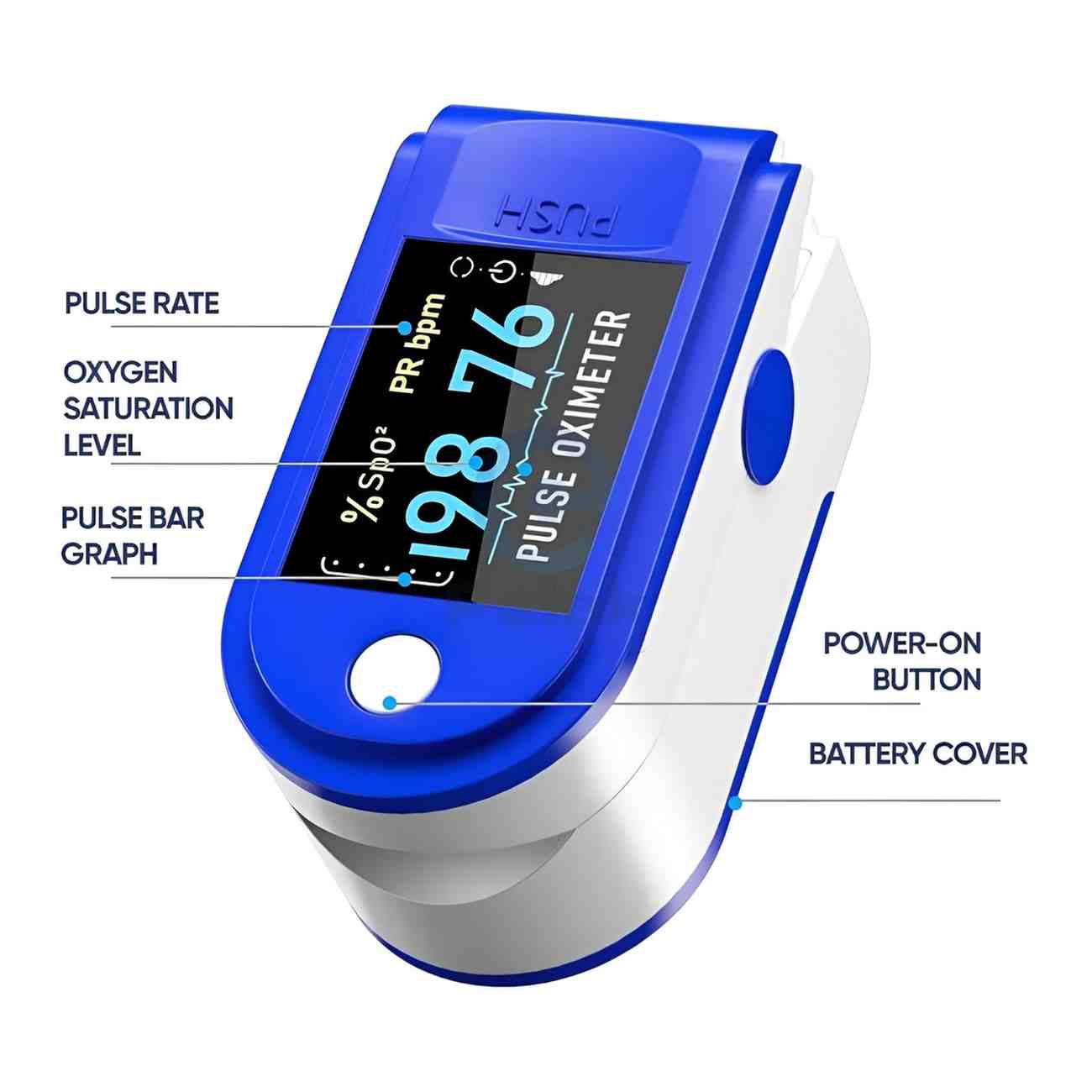

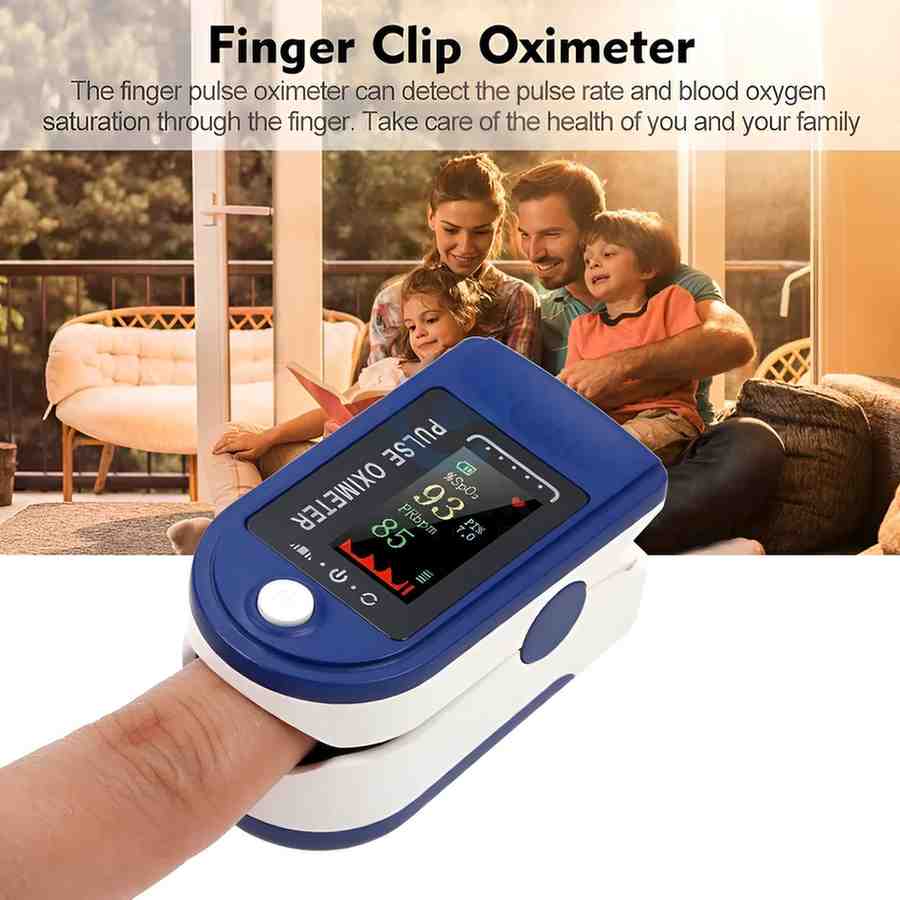

The IP22 fingertip pulse oximeter is a compact medical monitoring device designed to measure blood oxygen saturation (SpO2), pulse rate (PR), and perfusion index (PI) quickly and accurately. Its IP22 protection rating means the device is safeguarded against accidental finger contact with internal components and can withstand light water drips at angles up to 15°. Featuring a bright dual-color OLED or LED display with multiple viewing modes, the oximeter provides clear real-time readings for home, sports, travel, and healthcare use. Powered by two AAA batteries, it includes an automatic power-off function to conserve battery life and offers reliable performance in a wide range of operating environments.
Specifications
- Product Type: Fingertip Pulse Oximeter
- Protection Rating: IP22
- SpO2 Measurement Range: 0–100% (Typical)
- SpO2 Accuracy: ±2% (70%–100%)
- Pulse Rate Range: 30–250 BPM
- Pulse Rate Accuracy: ±2 BPM or ±2%
- Perfusion Index (PI): 0.1% – 20.0%
- Display Type: Dual-Color OLED / LED
- Power Supply: 2 × AAA Batteries
- Auto Power-Off: 5–8 Seconds
- Dimensions: Approx. 57 × 31 × 32 mm
- Operating Temperature: 5°C – 40°C
- Operating Humidity: 15% – 80% RH (Non-Condensing)
- Applications: Home Monitoring / Sports / Healthcare
