RELIFE RL-014E

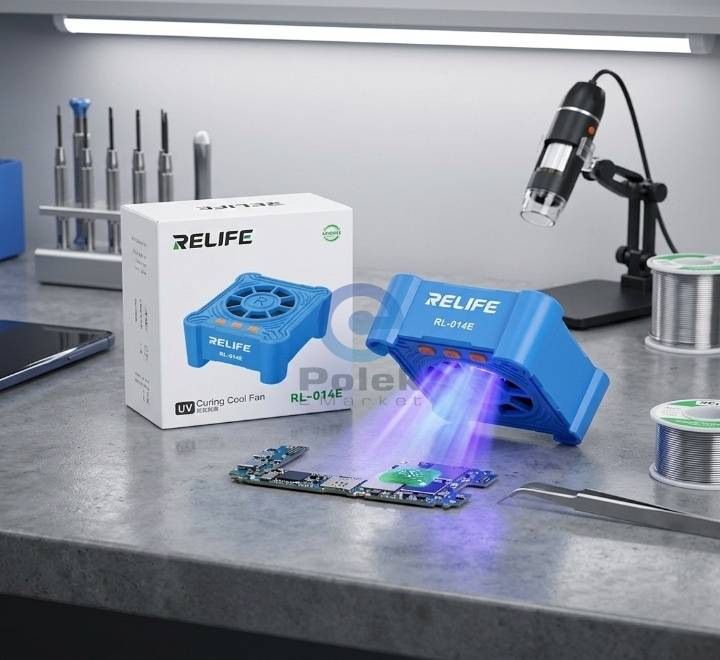

RELIFE RL-014E is a 4-in-1 multi-functional UV curing and cooling fan engineered specifically for high-precision mobile phone motherboard repairs and electronics soldering. Produced by the repair tool brand RELIFE, this compact device serves as a combination workspace enhancer that speeds up hardware maintenance while keeping fumes and heat under control.

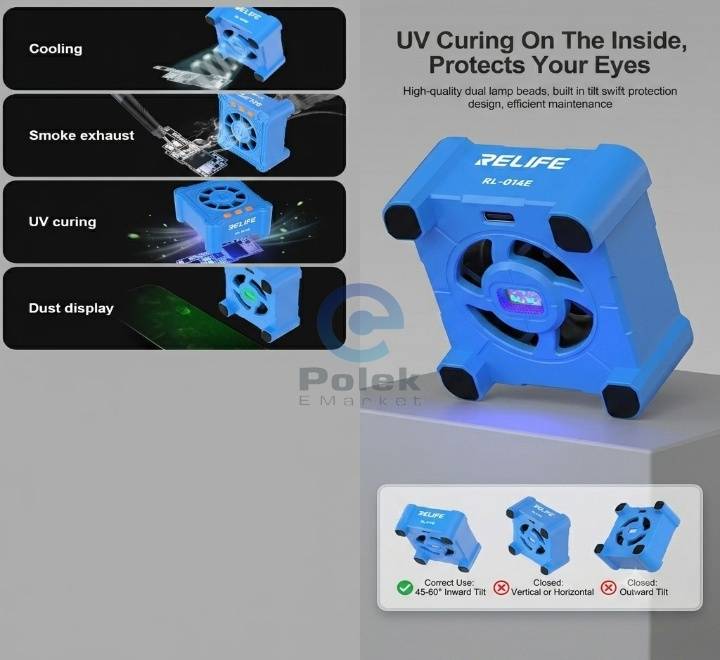

Key Functions
· UV Curing: Dual SMD LED lamp beads deliver a 6W peak power output optimized for rapid curing of UV glues, solder mask green oil, resins, and optical adhesives.
· Cooling Fan: Employs a high-speed 12,000 RPM fan to quickly dissipate heat from freshly soldered chips and motherboards to protect sensitive silicon from overheating damage.
· Smoke Exhaust: Safely extracts harmful fumes and toxic smoke generated by flux and solder wire away from your immediate workspace.
· Dust Display: Features a special lighting wavelength to highlight fine dust particles, helping technicians keep repair surfaces pristine.
Key Specifications & Safety Features
· Built-in Power: Uses a rechargeable 700mAh internal battery, eliminating messy workspace cables.
· Type-C Fast Charging: Refuels completely in roughly 2 to 2.5 hours via a universal Type-C port.
· 3-Speed Airflow: Includes 3-level adjustable fan speeds via a one-button toggle layout.
· Eye Protection Tilt Switch: Safety-first built-in tilt sensor automatically cuts power to the internal UV lamps if the unit is lifted or tilted, stopping high-energy UV exposure to the eyes.
· Form Factor: Weights just ~0.11 kg with ultra-compact dimensions of roughly 62.5 x 62.5 x 32.5 mm, easily fitting into any on-the-go tech travel kit.
