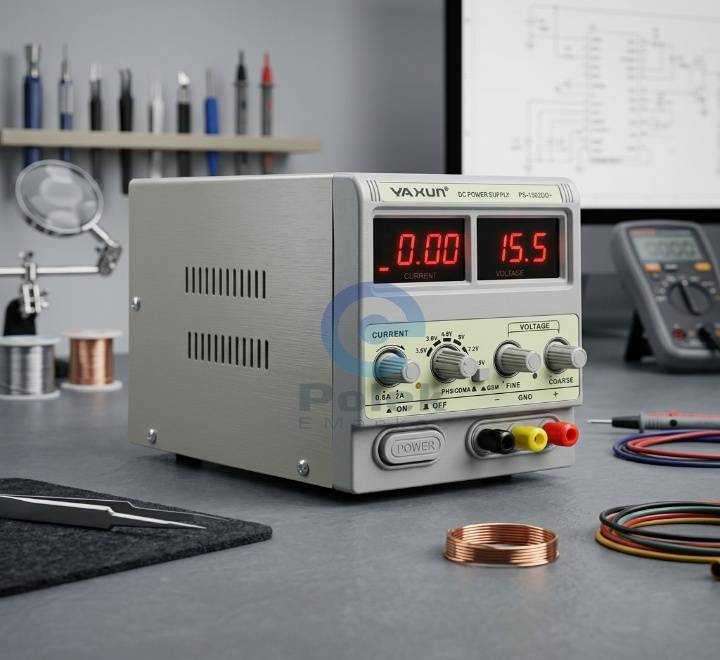

YAXUN YX-1502DD+

YAXUN YX-1502DD+ is an affordable, entry-level 15V / 2A adjustable regulated DC benchtop power supply specifically optimized for mobile phone, computer, and electronics repair.

Key Technical Specifications

·         Output Voltage: Continuously adjustable from 0 to 15V DC.

·         Output Current: Adjustable output from 0.6A to 2A.

·         Power Input: Configured for 220V AC (standard variants) with a maximum consumption of 35W.

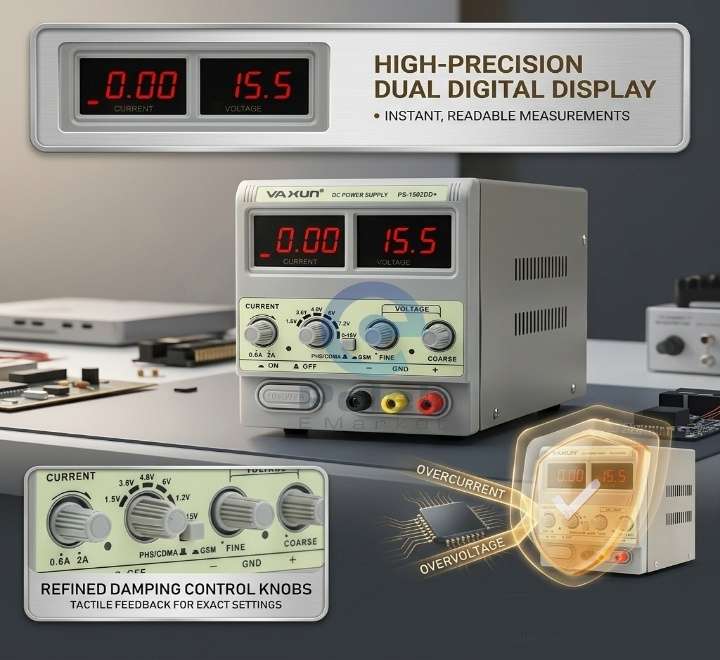

·         Displays: Dual standalone LED digital indicators that read real-time applied voltage and amperage pull simultaneously

Core Diagnostic & Safety Features

·         Short-Circuit Protection: Overcurrent protection safeguards sensitive PCB layers from burning if you probe a shorted component.

·         Automatic Recovery: Automatically resets and restores output once the short-circuit condition on the board is cleared.

·         Pre-set Voltages: Sub-grade selector paths allow quick toggling to common smartphone voltages like 1.5V, 3.6V, 4.8V, 6.0V, and 7.2V.

·         RF Signal Detection: Features an integrated radio frequency sensor capable of identifying GSM, CDMA, and PHS wireless signals to verify if a device's antenna array is transmitting.
