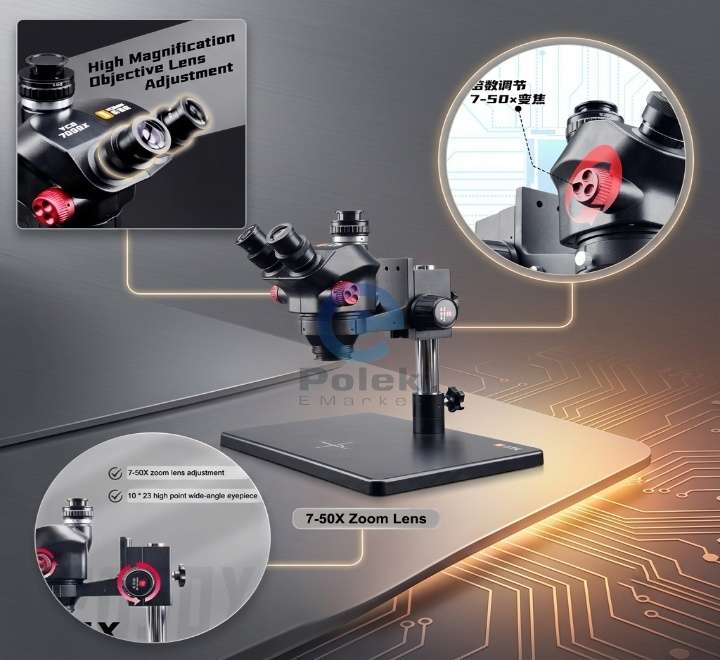

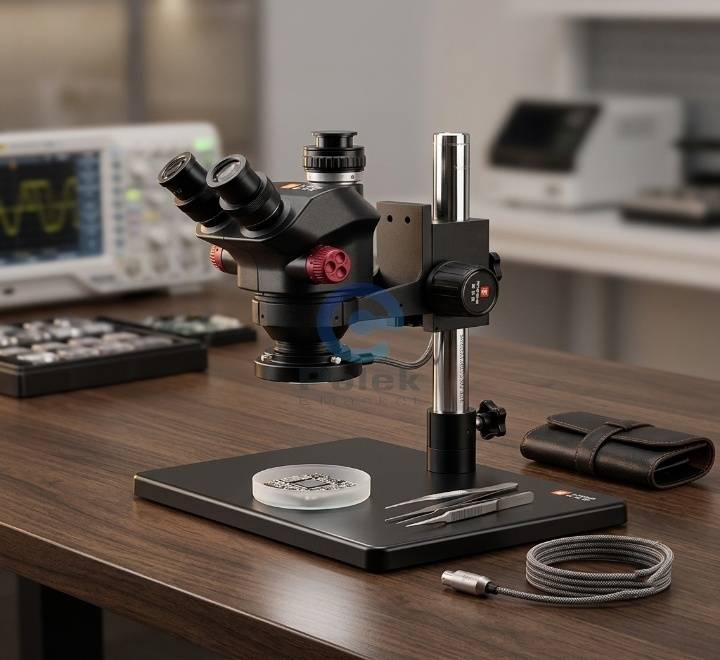

YCS 7050X

YCS 7050X is a professional-grade trinocular stereo microscope built primarily for cell phone logic board repair, micro-soldering, and electronics diagnostics. It is highly regarded by micro-electronics technicians as a reliable budget option offering crisp depth perception and comfortable working distance.

Specifications

·         Magnification Range: Continuous zoom from 7X to 50X (some variant listings cite extended ranges depending on objective lens modifications).

·         Optical Head: 45-degree inclined, 360-degree swiveling trinocular head.

·         Simultaneous Viewing: Includes a 0.35X or 0.5X CTV adapter providing synchronous focus between your eyes and a connected monitor.

·         Eyepieces: WF10X/23mm ultra-widefield adjustable eyepieces for enhanced peripheral clarity.

·         Illumination: Equipped with a 144-LED ring light offering adjustable brightness.

·         Mounting Base: Features an extra-large, heavy-duty aluminum alloy base pad to prevent shaking or tipping while soldering.

Key Benefits for Tech Repair

·         Excellent Depth Perception: Provides clear 3D vision, which is essential for guiding your soldering iron around dense BGA chips, CPUs, and microscopic traces.

·         Camera-Ready Configuration: The third port makes it easy to mount an external 4K or HDMI microscope camera for live streaming, recording, or teaching purposes.

·         Ample Working Space: Offers enough vertical clearance under the objective lens to maneuver hot air guns, tweezers, and soldering irons freely
