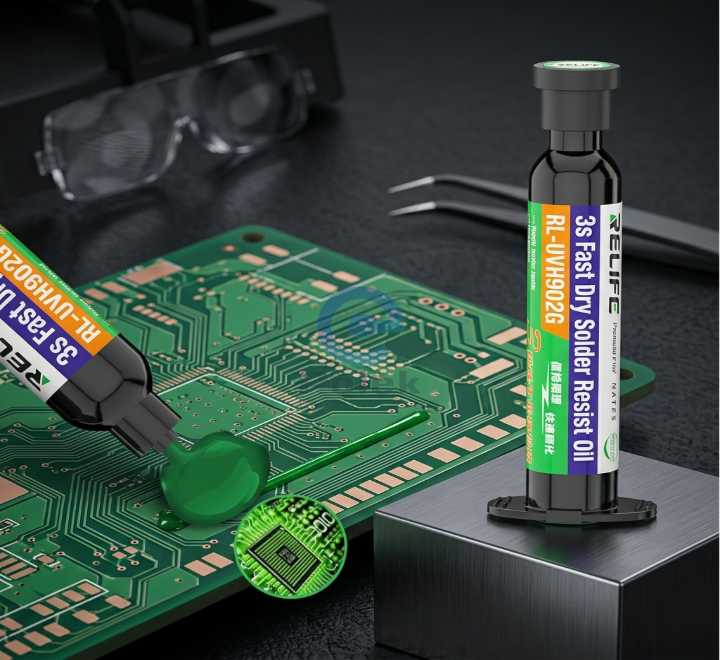

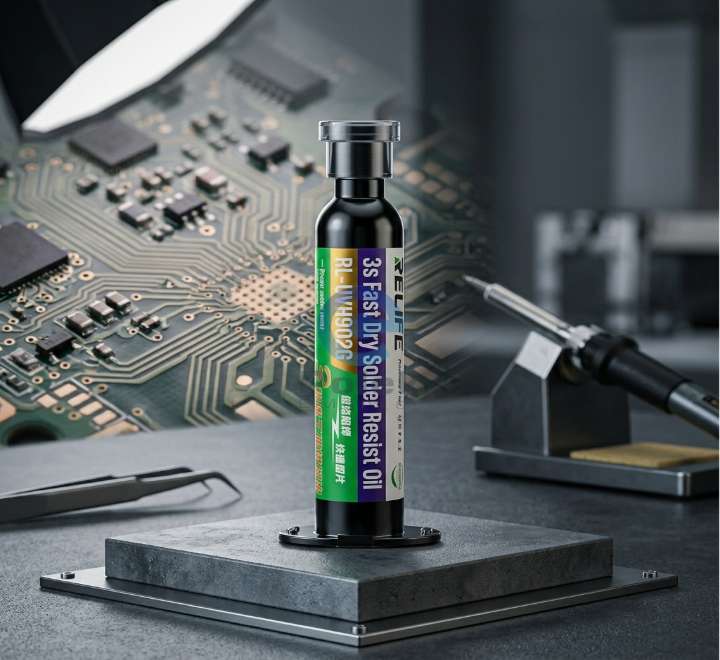

RELIFE RL-UVH902G

RELIFE RL-UVH902G is a professional-grade, UV-curing solder mask oil (green color) specifically engineered for precision PCB and mobile phone motherboard repairs. It is primarily used by technicians to insulate circuit paths, secure jump wires, and repair damaged or peeling solder mask layers.

Core Technical Specifications

·         Curing Speed: Ultra-fast 3-second rapid curing under a UV light source.

·         Capacity: Standard 10CC / 10ML syringe-style dispenser.

·         Color Code: The "G" suffix explicitly denotes Green (the series also includes Blue, Yellow, Red, Black, and White variants).

·         Thermal Limit: High-temperature resistant; stable compound that will not soften during subsequent hot-air reworking.

Primary Repair Applications

·         Insulation Protection: Prevents short circuits after soldering jump wires or replacing BGA chips.

·         Trace Repair: Patches scratches or peeling sections on computer and phone logic boards.

·         Component Anchoring: Mechanically secures micro-components like tail plugs, charging ports, screw posts, and delicate jumping wire pads.

·

Key Performance Benefits

·         Zero Dead Angles: Flow properties allow 360-degree coverage around complex components before freezing instantly under UV light.

·         High Adhesion: Forms a tough, durable film layer that will not easily peel off, yet can be cleanly scratched into powder if a rework is required.

·         Time Efficiency: Completely replaces traditional "green oil" formulations that require minutes to dry, drastically cutting down diagnostics and assembly time.
