SUNSHINE SS-601G

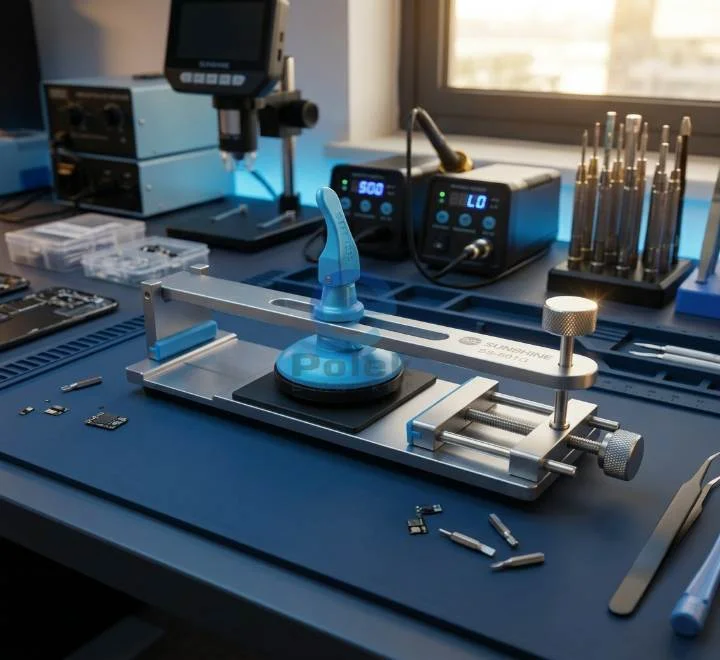

SUNSHINE SS-601G is a professional, heating-free mobile phone screen removal and disassembly fixture. It is widely used by technicians and DIY enthusiasts to separate LCD screens and remove glass back covers safely without the need for a heat gun or heating plate.

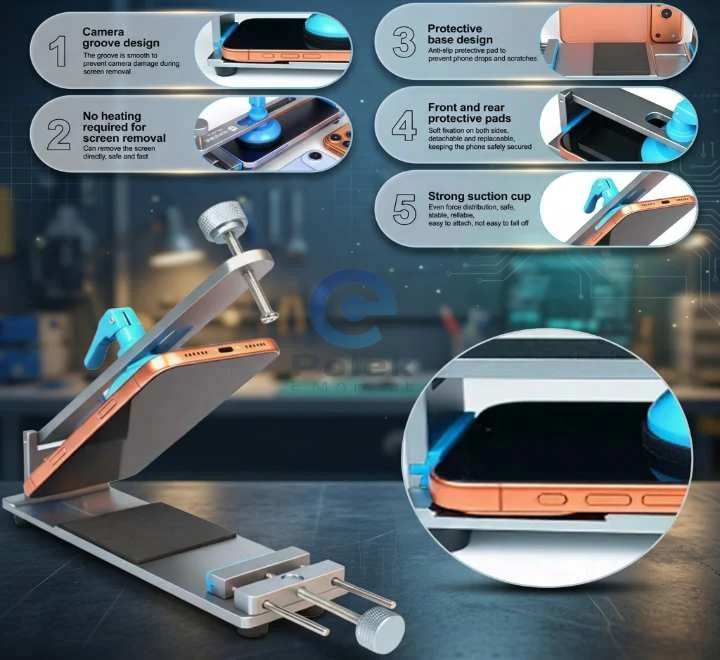

Key Features

·         Heating-Free Separation: Allows you to pull the screen or back glass away cleanly without applying high heat, reducing the risk of damaging heat-sensitive components like batteries or camera sensors.

·         Strong Suction Cup: Uses a uniform, heavy-duty suction mechanism that pulls vertically to prevent the screen from twisting or bending awkwardly, minimizing flex cable tearing.

·         Camera Groove Design: Features a protective, smooth recess so the phone's protruding rear camera lenses do not get crushed or scratched while clamped face-down.

·         Universal Clamping: Features an adjustable side knob to tightly secure smartphones of various sizes (up to 98% of popular iOS and Android models).

·         Protective Cushioning: Covered with soft side and base padding to prevent scratching the phone’s chassis or frame during tight operations.

How to Use It

1.      Prep the Phone: Remove the phone's bottom housing screws (like the pentalobe screws on iPhones).

2.      Apply Alcohol: Drop a small amount of high-purity industrial alcohol (>95%) along the perimeter of the screen or back glass to help soften the internal waterproof adhesive.

3.      Secure the Device: Place the phone into the adjustable base plate fixture, align it carefully, and tighten the side tension screws securely.

4.      Attach & Pull: Push the top suction cup firmly down onto the bottom edge of the glass. Lock the adjustment buckle, and then slowly rotate the top mechanical screw knob. This provides upward micro-tension, lifting the screen open safely and incrementally.
